Satellite - DVB-Satellite modulator

  • Product
  • IP Core Products
  • Satellite
  • DVB-Satellite modulator

Product code: CMS0035

The CMS0035 satellite modulator core is an integrated core featuring our DVB-S/-DSNG modulator(CMS0010) and DVB-S2 modulator(CMS0025) cores.

Thus, our CMS0035 core provides all the functionality required to address the requirements of the ETSI DVB-S forward-link satellite Standard (EN300421), the ETSI DVB-DSNG digital satellite news gaterhing Standard (EN301210) and also the ETSI DVB-S2 forward-link satellite Standard (EN302307).

Modes that are not required may be removed with synthesis options to generate a compact, efficient design.

Also see

- DVB-S/-DSNG modulatorr - DVB-S2 modulator

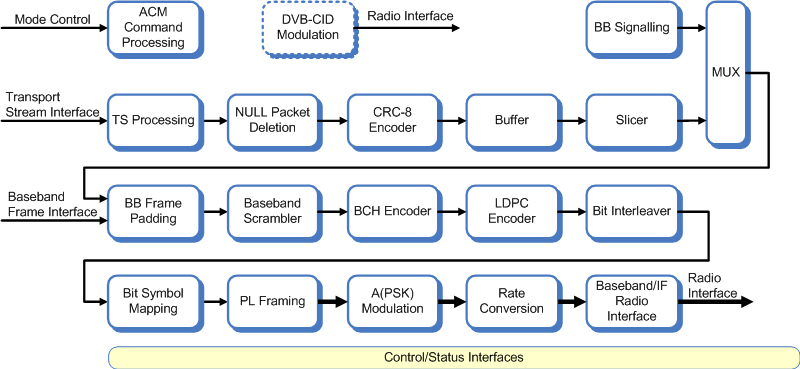

Block diagram

* Click on image for further information

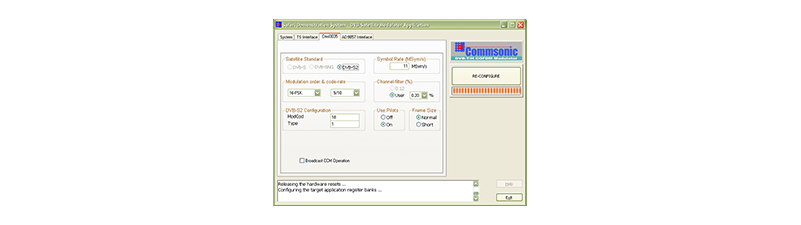

Safari Plug-in

* Click on image for further information

Release note

Download

Technical data brief

2nd December 2008 (455 kB)

IP Guide

2nd December 2008 (1.21 MB)

Altera megacore

v1.0.4 (20.00 MB)

Safari Plug-in

v1.14 (6.50 MB)

Certification

Standards compliance

ETSI EN 300 421

ETSI EN 302 307

ETSI EN 301 210

Features

Integrated DVB-S Reed-Solomon channel coder.

Variable sample-rate interpolation provides ultra flexible clocking strategy.

Support for CCM, VCM and ACM modes.

Compatible with Broadcast, DSNG, Interactive and Professional DVB-S2 profiles.

QPSK, 8PSK, 16APSK, 32APSK support.

Short (16kb) and normal (64kb) frames

Frames with/without intra-frame pilots.

Automatic dummy-frame insertion.

Integrated DVB-S2 LDPC Channel Coder.

Configurable for either low-latency or high throughput encoding.

Optional internal IF conversion.

Applications

DVB-Satellite transmission systems and point-to-point microwave transceivers.

Test equipment.

Implementation

Optimised for ASIC, Xilinx and Altera.

Evaluation boards available.

Plug-ins / Extensions

ASI/SPI interface with TS PCR rate adaptation.

DVB-DSNG feature-set extensions.
