Satellite - DVB-S/-DSNG modulator

  • Product
  • IP Core Products
  • Satellite
  • DVB-S/-DSNG modulator

Product code: CMS0010

The CMS0010 DVB-S/-DSNG modulator is an integrated modulator and Reed-Solomon encoder core designed specifically to address the requirements of the ETSI DVB-S forward-link satellite Standard (EN300421).

The core can be extended to include the trellis coding as reguired by the ETSI DVB-DSNG forward-link satellite Standard (EN301210).

Also see

- DVB-S2 modulator - DVB-Satellite modulator

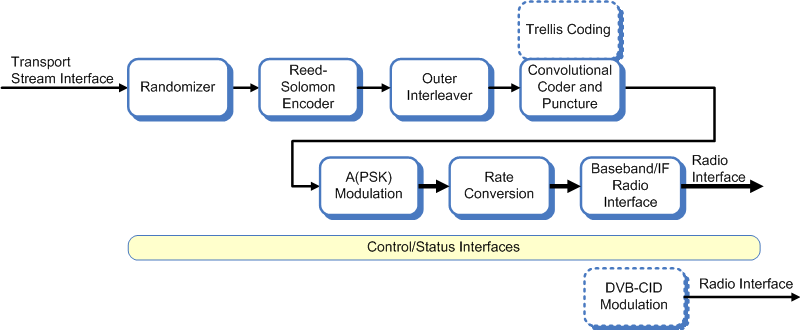

Block diagram

* Click on image for further information

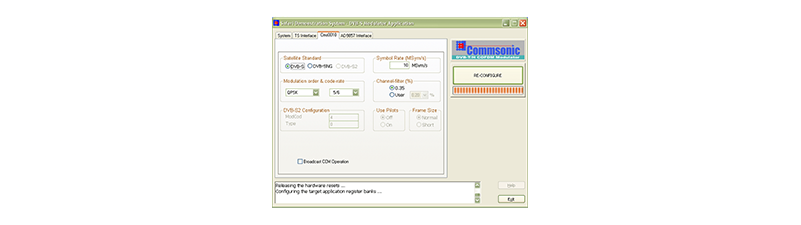

Safari Plug-in

* Click on image for further information

Release note

Download

Technical data brief

23rd October 2008 (399 kB)

IP Guide

2nd December 2008 (1.21 MB)

Altera megacore

v1.0.4 (20.00 MB)

Safari Plug-in

v1.14 (6.50 MB)

Certification

Standards compliance

ETSI EN 300 421

ETSI EN 301 210

Features

Integrated Reed-Solomon channel coder.

Variable sample-rate interpolation provides ultra flexible clocking strategy.

Optional internal IF conversion.

Applications

DVB-S transmission systems and point-to-point microwave transceivers.

Test equipment.

Implementation

Optimised for ASIC, Xilinx and Altera.

Evaluation boards available..

Plug-ins / Extensions

ASI/SPI interface with TS PCR rate adaptation.

DVB-DSNG feature-set extensions.
