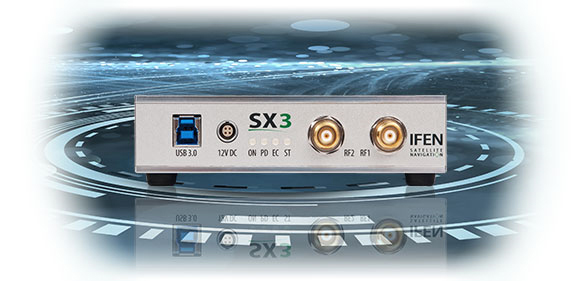

SX3 GNSS SOFTWARE RECEIVER

  • Real-time capable on COTS PC hardware when simultaneously tracking all current civil SIS signals of GPS, Galileo, GLONASS, BeiDou, QZSS, SBAS and IRNSS systems (using 8 IF input streams at a sample rate of 20 MHz each)
  • Adaptable configurations enabling real-time full featured reference station mode on COTS PC hardware
  • Recorder functionality to store data files for later post-processing
  • Entire configurability provided within the graphical user interface (including online configuration parameter description within GUI)
  • Live configurability for dedicated parameters as DLL, FLL and PLL bandwidths
  • Dedicated widgets for PVT solution, RF-spectrum, multi-correlator output, GNSS channel output, acquisition output,...More

Documentation

Datasheet SX3 GNSS SOFTWARE RECEIVER (2019)
