Satellite - DVB-S/-DSNG modulator
Product code: CMS0010
The CMS0010 DVB-S/-DSNG modulator is an integrated modulator and Reed-Solomon encoder core designed specifically to address the requirements of the ETSI DVB-S forward-link satellite Standard (EN300421).
The core can be extended to include the trellis coding as reguired by the ETSI DVB-DSNG forward-link satellite Standard (EN301210).

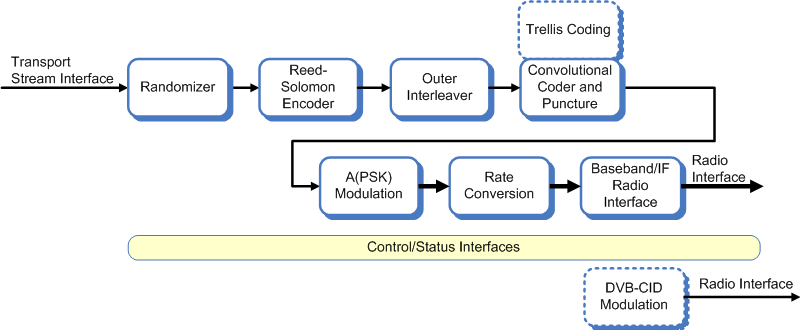

Block diagram
* Click on image for further information

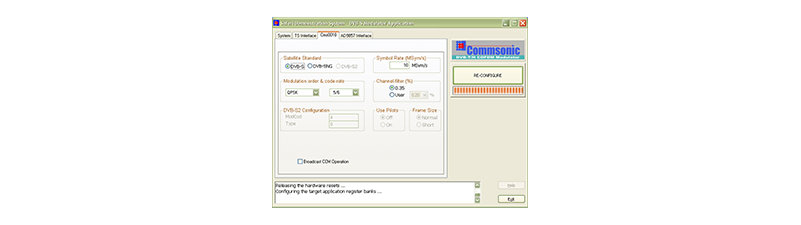

Safari Plug-in
* Click on image for further information
Release note
DownloadTechnical data brief
23rd October 2008 (399 kB)IP Guide
2nd December 2008 (1.21 MB)Altera megacore
v1.0.4 (20.00 MB)Safari Plug-in
v1.14 (6.50 MB)Certification
Standards compliance
ETSI EN 300 421
ETSI EN 301 210
Features
Integrated Reed-Solomon channel coder.
Variable sample-rate interpolation provides ultra flexible clocking strategy.
Optional internal IF conversion.
Applications
DVB-S transmission systems and point-to-point microwave transceivers.
Test equipment.
Implementation
Optimised for ASIC, Xilinx and Altera.
Plug-ins / Extensions
