Time & Frequency Systems

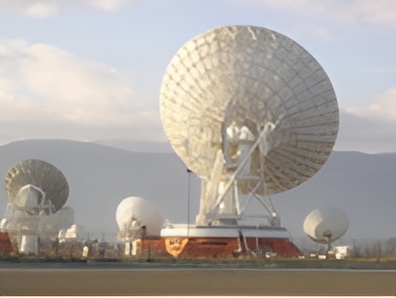

Oscilloquartz Time & Frequency products and systems provide highly reliable and unsurpassed reference signals performances for satellite tracking stations, secure communications systems, metrology and other applications.
Often based on functions or products available from our regular production line or issued from generic products adapted to suit the application requirement. The choice of the Frequency reference sources is invariably defined in function of the application and the technical requirement. It includes Hydrogen Maser, Primary Cesium Standard, GPS Receiver as stand alone reference or a combination of them.
When coupled with our BVA state-of-the-art oscillator, short term performances and phase noise characteristics are raised to the highest level attained with commercial products. The BVA is ideally suited for this purpose as it offers excellent stability characteristics and is less sensitive to temperature changes than most oscillators.
This combination provides signals of excellent stability performance as well as high spectral purity, necessary for a wide range of applications. When locked to an Hydrogen Maser, Cesium Standard or GPS/GLONASS Receiver, the BVA oscillator provides the optimum long term performances of the frequency reference combined with the excellent short terms characteristics of the BVA.
Features
Fully compliant to ITU-T G.811 / Stratum 1 when locked to GPS
Integrated high stability holdover functionality < 2 * 10-10 /day
Holdover compliant to ITU-T G.812 type I, V, VI
Output 2.048MHz, 10MHz, 1PPS
Benefits
GPS based primary reference clock
G.811 Sync generator for Laboratory applications
Features
Input frequencies 500 kHz to 50 MHz
12 outputs low additive phase noise
BNC connectors for all inputs and outputs
AC power supply (100-240 Vac)
OSA 5020s can be placed in cascade to extend total output capacity
Benefits
Reliable, low cost, compact
Cost efficient synchronisation solutions for OEM and system integrators
Very easy to install
Wide amount of output capacity
Features
Passive Hydrogen Maser
Low phase noise output
20 years expected life time
2.048 / 5 / 10 / 100 MHz and 1 PPS standard outputs
Digital control and monitoring of all operations on LCD display & RS-232C
10 minutes batteries backup
3 years warranty on Physics package
Benefits
Extremely stable frequency reference
Alternative technology to Caesium reference sources
Far cheaper than active hydrogen Maser.
Lifetime is not constraint to 10-12 years like with Caesium oscillators
Low cost hydrogen refurbishment
Features
F³ shelves are based on the 19" standard
Modular concept with front panel access
Alarms and monitoring
Extensive range of Function modules
Redundant design, automatic switchover
Benefits
High frequency stability and long term accuracy, on both GPS– or PPS- locked and Holdover mode
Perfectly suited for integration into OEM systems
Excellent filtering of frequency source
Very low phase noise
Very Compact unit
Flexibility and high performance
Fault finding process simplified
Features
10 Mhz low phase noise output
5” x 4”x 2” format
Provides UTC-derived timing information through UTC-locked PP2S output & TOD compliant to NMEA0183
Frequency stability < 1 x10-10 /day (typical)
ITU- T G.811 / ST1 compliant when locked to GPS
ITU-T G.812 (I, V, VI) compliant holdover
Benefits
Economic, reliable and compact
Integrated high stability holdover comparable to that of an SSU
Ideal for synchronising DAB/DVB equipment
Features
1x 10MHz low noise output
8 outputs individually configurable by switches
E1 and 2.048 MHz outputs
UTC locked 1 PPS and 10 MHz outputs
Optional auxiliary input: E1 or frequency G.703 compliant
BNC connectors for all inputs and outputs
TOD compliant to NMEA0183
ITU-T G.811 / Stratum 1 compliant when locked to GPS
ITU-T G.812 (I, V, VI) compliant holdover
Benefits
Reliable, low cost, compact GPS receiver
Integrated high stability holdover
Synchronisation solutions for OEM and system integrators
Wireless and wireline telecom sync requirements
Time and frequency reference for test equipment and instruments
Specialised ATM and LAN/WAN applications
DAB / DVB broadcasting systems
Features
Stratum 1 NTP server
64 bits RSA Data Security, Inc. MD5 Message-Digest Algorithm
Supervision and configuration through Ethernet (HTTP, SNMP, TELNET)
19’’ 1U rack case
External GPS synchronization input
"Plug-and-play" installation
Benefits
Compact, economic, fully manageable Stratum 1 NTP Server
Autonomous, independant synchronisation of TCP/IP network to UTC
Precise, UTC-traceable time stamping of e-business transactions
Precise time stamping of alarms
Synchronisation of telecom switched, for precise UTC-traceable billing
Features
Dual external synchronization can be chosen on GPS, NTP, IRIG-B / AFNOR NFS 87500 1000 Hz or DCLS signals
Up to 3 synchronization outputs (IRIG-B, PPS, ASCII, 10MHz sine wave,…)
19’’ 1U rack case
Output 2.048MHz, 10MHz, 1PPS
Alphanumeric display
Low ageing OCXO accuracy
Benefits
Accuracy of up to 100 nanoseconds when GPS synchronized
Easily configurable with WEB page or “OSCILLOQUARTZ Network Manager”
The time and date can be individually offset on each output
High security level
Can run for 2 hours on its internal battery
Features
Input frequency 1PPS to 50 MHz
12 PPS outputs low additive phase noise
BNC connectors for all inputs and outputs
AC power supply (100-240 Vac)
Several OSA 5030 can be placed in cascade to extend total output capacity
Benefits
Reliable, low cost, compact
Cost efficient synchronisation solutions for OEM and system integrators
Very easy to install
Wide amount of output capacity
Features
Dual input frequency and PPS
2x 8 outputs (expandable up to 2x12)
BNC connectors for all inputs and outputs
AC or DC power supply
Local or remote control
Benefits
Reliable, compact
Fast switching time (< 3ms typical)
Fast RF option switching time @ 1.0E-06s
Features
Input: E1, 64kHz, 2.048, 5, 10 MHz frequency
Output: 5 or 10 MHz
BNC connectors for all inputs and outputs
Integrated high stability holdover functionality
Benefits
Reliable, low cost, Active Noise Filter
Noise filtering of Atomic Clocks (Rb, Cs) and GNSS receivers
Frequency reference for test equipment and instruments
Frequency reference for metrology laboratories
Features
Dual, independent 5MHz outputs
Dual frequency source from state-of-the art BVA oscillators
Fine frequency adjustment
Benefits
Ultra low phase noise and outstanding short term stability
NExcellent frequency stability over temperature range
High long term stability
