Satellite - DVB-S2 modulator
Product code: CMS0025
The CMS0025 "SkyPlug" DVB-S2 (A)PSK modulator is an integrated modulator and channel-coder core designed specifically to address the requirements of the ETSI DVB-S2 forward-link satellite Standard (EN302307). It can operate in CCM and VCM/ACM modes and is fully compliant with the standard.
Block diagram
* Click on image for further information
Safari Plug-in
* Click on image for further information
Release note
DownloadTechnical data brief
2nd December 2008 (455 kB)IP Guide
2nd December 2008 (1.21 MB)Altera megacore

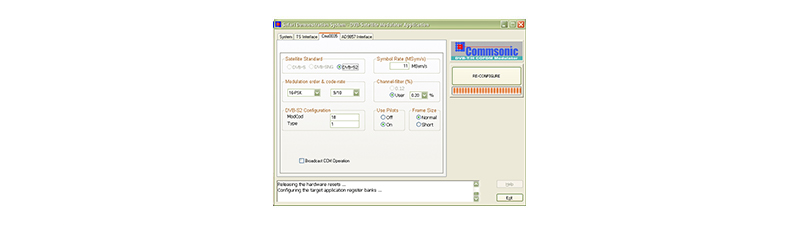

v1.0.4 (20.00 MB)Safari Plug-in
v1.14 (6.50 MB)Certification
Standards compliance
ETSI EN 302 307
Features
Support for CCM, VCM and ACM modes.
Variable sample-rate interpolation provides ultra flexible clocking strategy.
Compatible with Broadcast, DSNG, Interactive and Professional DVB-S2 profiles.
QPSK, 8PSK, 16APSK, 32APSK support.
Short (16kb) and normal (64kb) frames
Frames with/without intra-frame pilots.
Automatic dummy-frame insertion.
Integrated LDPC Channel Coder.
Configurable for either low-latency or high throughput encoding.
Optional internal IF conversion.
Applications
DVB-S2 transmission systems and high-performance point-to-point microwave transceivers.
Test equipment.
Implementation
Optimised for ASIC, Xilinx and Altera.
