OEM Solutions
OEM Solutions by Oscilloquartz is the number one set of solutions and provide the highest capabilities for high performance reference when state of the art stability and competitive accuracy are needed at a minimum price.
OSA OEM Clock Series offer numerous variants to be used in a single channel / dual channel redundant configuration. The product family is highly versatile and adapts to customer integration requirements: dimension of the board, number/type/frequency of output signals, custom back-plane connectors and front panel, custom management protocol.
The OSA OEM Clock Series have excellent proven performance level of, amongst others, MTIE in harsh temperature conditions

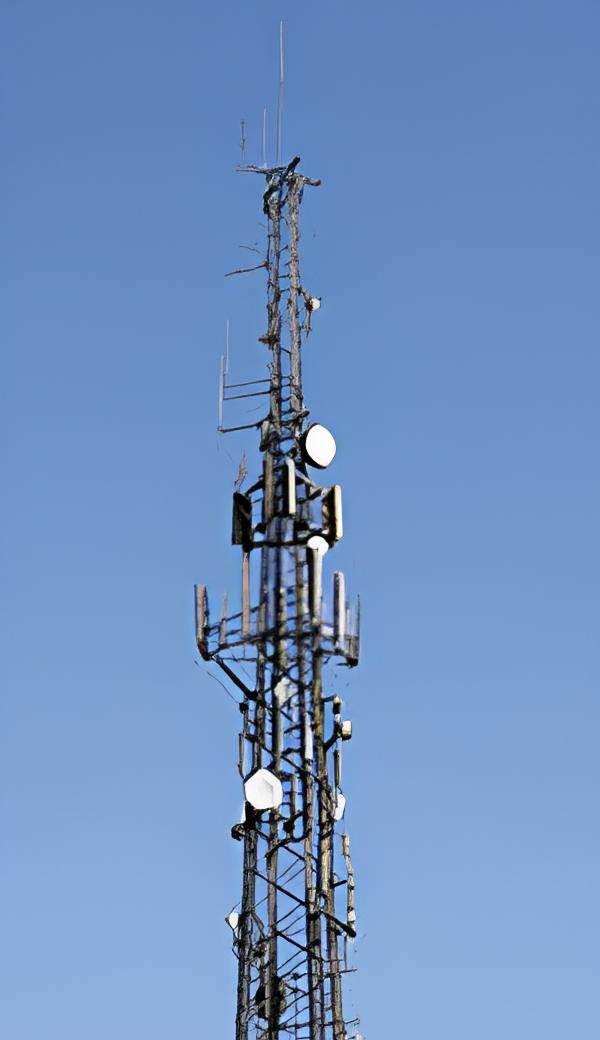

This makes it suitable for synchronising e.g. 2nd and 3rd generation cellular networks such as cdmaOne, cdma2000, UMTS-TDD, TD-SCDMA., WiMAX-TDD and WiMAX IEEE 802.16e. These mobile networks require their base stations to synchronise the frames on the radio interface to a common reference.
The OEM GPS Clock Series provide the signals necessary for these applications. Its holdover mode keeps the base stations operational, even when the GPS satellite signals are momentarily lost, caused for example by interference problems.
Features
10 Mhz low phase noise output
Phase alignment +/- 5ns on the raising edge of 1 PPS
1 PPS Output phase aligned to UTC Phase Time
Frequency stability < 1 x10-10 /day (typical)
Form factors: 5” x 4”x 2”, Piggy-Back PCB, 19” x 1U unit
Higher grade Oscilloquartz 8663 highly stable and accurate oscillator
Multiple outputs PPS and 10 MHz
Benefits
Provides with TDD and IEEE 802.16-e class of synchronization
Economic and highly reliable
Features Oscilloquartz 8663 Higher grade oscillator for state of the art accuracy and stability
High availability of synchronization thanks to high stability holdover and minimal phase drift
Versatile product accommodates with all type of Base Stations:
- Variety of Cost / Performance levels
- Variety of form factors: compact module, minimal footprint PCB, 19” x 1U unit
- Variety of options available
Minimal integration time with all in one Time and Frequency units including multiple Frequency outputs on request.
Features
Fully compliant to ITU-T G.811 / Stratum 1 when locked to GPS
Simultaneous tracking of up to 8 satellites
Support for 1+1 redundant configurations
Integrated high stability holdover functionality
Holdover compliant to ITU-T G.812 type I, V, VI
Support 1+1 redundant configuration
10MHz, UTC-locked 1PPS Outputs
Optional 1.544 Mbps, 2.048 Mbps, or frequency input
Customized form factors and function on demand
Benefits
Reliable, low cost and compact GPS Clock for the OEM market
Synchronization of Wireless base station wherever frequency and phase accuracy are required, e.g. UMTS
TDD, TD-SCDMA., WiMAX-TDD, WiMAX IEEE 802.16e.
Very Compact unit
Other functions and features on demand
Features
1 to 4 1PPS and 10MHz outputs of each type, avoiding the host equipment a useless and noisy distribution / amplification stage
Phase alignment of all outputs within ±10ns with “0 crossing” 1PPS / 10MHz
Wide range of connectivity, such as board to board, ribbon cable or coax connectors
Available in several Oscillator choices, providing different degree of accuracy, low phase noise, stability & holdover capability
Optional PPS or GLONASS input
Benefits
High frequency stability and long term accuracy, both Input-locked and Holdover mode
Economic, reliable and highly compact board level integration
Quick and easy integratio
Synchronization of Wireless base station wherever
frequency and phase accuracy are required, e.g. UMTS-TDD, TD-SCDMA., WiMAX-TDD, WiMAX IEEE 802.16e.
Features
Compact 4TE high (20mm) Sync Clock
1PPS, 10MHz sine and TTL
Phase alignment of all outputs within ±10ns with “0 crossing” 1PPS / 10MHz
Enables integration in micro TCA and ATCA type of blades
UTC-derived 1PPS and NMEA0183 timing information
Benefits
High frequency stability and long term accuracy, on both GPS– or PPS- locked and Holdover mode
Economic, reliable and highly compact board level integration
Reliable, low cost and compact GPS Clock for the OEM market
Synchronization of Wireless base station wherever frequency and phase accuracy are required, e.g. UMTS-TDD, TD-SCDMA., WiMAX-TDD, WiMAX IEEE 802.16e.
Very Compact unit
Quick and easy integration
Other functions and features on demand
Features
1PPS and 10MHz outputs
UTC-derived timing information
Integrated high stability holdover functionality
ITU- T G.811 / ST1 compliant when locked to GPS
ITU-T G.812 (I, V, VI) compliant holdover
Benefits
Economic, reliable and compact 1 RU GPS Clock
Very accurate frequency and phase
Totally maintenance-free design
Other functions on demand
Features
High performances OCXOs with high loop time constant
Very low phase jump during channel switchover in redundant configuration
10 MHz and PP2S standard outputs
Numerous customer specific outputs available
Low phase noise 10 MHz output
RS-232C local management
RS-485 user board management
Low power consumption
Expected life time greater than 15 years
Highly flexible / adaptable solution
Benefits
Extremely stable GPS-based frequency & phase reference
High time stability allowed
Better than 100 ns phase-time accuracy (locked)
Better than 7 μs / 24 hrs holdover phase-time accuracy
Better than 1x10-10 / 24 hrs holdover frequency accuracy
Minimal integration effort
By far cheaper than Rubidium based solution
